COMBI-CSS

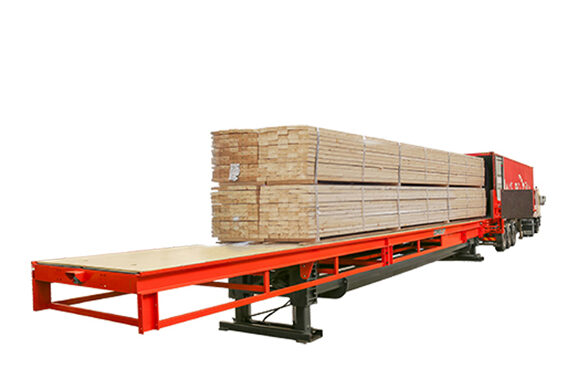

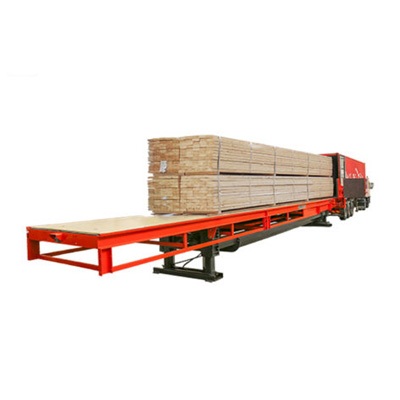

The Combi-CSS Container Slip-sheet is designed for efficient loading of freight containers, handling up to 30,000kg, and completing a full load cycle in less than 6 minutes.
About the combi-css
The Combi-CSS Container Slip-sheet, specifically designed for fast loading of freight containers with a maximum capacity of 30,000kg. Complete a full container load cycle in under 6 minutes. The CSS, or Container Slip-Sheet, is a simple-to-operate, cost-effective container loading solution that is faster and safer whether handling rough sawn timber, flat-packed furniture, or panel products.
- Capacity: 30,000kg
- Height: 626mm
- Overall Length: 16560mm
- Width: 3250mm
- Container Frame Length: 9780mm
- Motor: 37 kW 3 Phase
- Hydraulic Stroke Mechanism: 13600mm
- Container Sizes: 20′ / 30′ / 40′
- Slip Sheet Material: Hardox 500
- Cycle Time: 40′ in 6 mins
special
features
6 Minute Load Time
The Combi-CSS was developed to significantly speed up loading & offloading containers while increasing safety to operators and minimising damage to the product. Loads weighing up to 30,000kg, are assembled on the platform outside the container. An entire load cycle can be performed by a single operator. In fact, a 40-foot container can be fully loaded in as little as 6 minutes.
Hydraulic Levelling System
The Combi-CSS Container Loader’s Hydraulic Levelling System ensures smooth and precise loading by automatically adjusting the platform height. This feature compensates for uneven surfaces, maintaining stability and alignment during the loading process, which improves safety and efficiency.
3 Phase Electric Motor
The Combi-CSS Container Loader’s 3 Phase Electric Motor delivers reliable and powerful performance for heavy-duty operations. Its energy-efficient design ensures consistent power output, reducing downtime and maintenance while enhancing overall productivity during container loading.
Patented Push-Pull Mechanism
The Combi-CSS Container Loader’s Patented Push-Pull Mechanism allows for quick and seamless loading and unloading of containers. This innovative system securely grips and moves loads in and out of the container, minimising manual handling and reducing the risk of damage to goods.
suitable industries
Product specs and Informational downloads
manual downloads
You are currently not logged in.
To access the owner’s operating & servicing manual and spare parts manual for the truck, please log in below.
ready to enquire?
enquire about our Container Loader Range.
Contact us now to optimise your fleet with Combilift’s Container Loaders!
frequently asked questions
Find answers to the most common questions below about our Combi-CSS Range.
If you need additional information, please get in touch.
The Combi-CSS is a specialised Container Slip-Sheet loading system designed to load and unload freight containers quickly and safely. Using patented slip-sheet technology, it can complete a full 40-foot container loading cycle in under six minutes while reducing labour requirements and minimising product damage.
The Combi-CSS is suitable for loading a wide range of freight, including long goods, industrial products, manufactured items and export materials. Its 30,000kg capacity and smooth transfer system make it ideal for handling heavy loads while minimising product damage during loading and unloading operations.
The Combi-CSS streamlines container operations by using a motor-driven loading mechanism and patented slip-sheet technology. This allows loads to be transferred quickly and smoothly, reducing handling time and enabling complete loading cycles in under six minutes. The result is improved throughput and more efficient use of labour resources.
Compared with traditional loading methods, the Combi-CSS requires less manual handling, fewer personnel and significantly less time to complete a loading cycle. Its controlled loading process reduces the risk of load damage and improves workplace safety, making it a more efficient and cost-effective solution for container logistics operations.
The Combi-CSS combines speed, safety and efficiency in one solution. It loads containers in under six minutes, handles loads up to 30,000kg and can be operated by a single person. Its patented slip-sheet technology helps reduce product damage while improving productivity and lowering overall loading costs.
