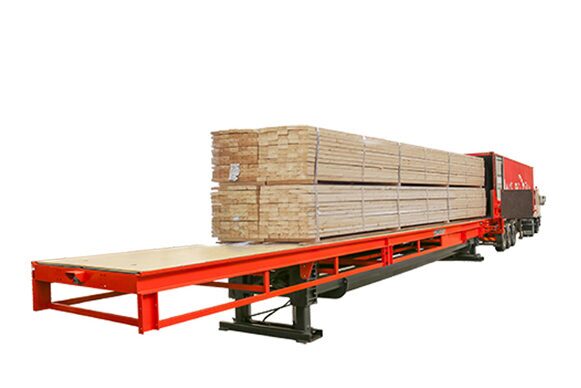

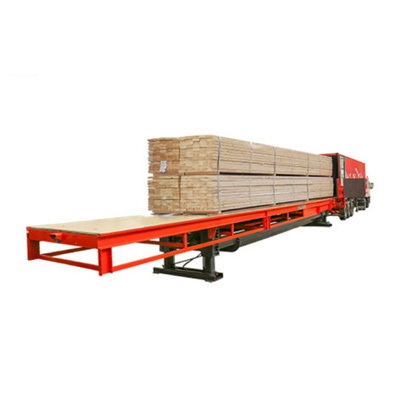

COMBI-CSS
The Combi-CSS Container Slip-sheet is designed for efficient loading of freight containers, handling up to 30,000kg, and completing a full load cycle in less than 6 minutes.
About the combi-css
The Combi-CSS Container Slip-sheet, specifically designed for fast loading of freight containers with a maximum capacity of 30,000kg. Complete a full container load cycle in under 6 minutes. The CSS, or Container Slip-Sheet, is a simple-to-operate, cost-effective container loading solution that is faster and safer whether handling rough sawn timber, flat-packed furniture, or panel products.
- Capacity: 30,000kg
- Height: 626mm
- Overall Length: 16560mm
- Width: 3250mm
- Container Frame Length: 9780mm
- Motor: 37 kW 3 Phase
- Hydraulic Stroke Mechanism: 13600mm
- Container Sizes: 20′ / 30′ / 40′
- Slip Sheet Material: Hardox 500
- Cycle Time: 40′ in 6 mins
special
features
6 Minute Load Time
The Combi-CSS was developed to significantly speed up loading & offloading containers while increasing safety to operators and minimising damage to the product. Loads weighing up to 30,000kg, are assembled on the platform outside the container. An entire load cycle can be performed by a single operator. In fact, a 40-foot container can be fully loaded in as little as 6 minutes.
Hydraulic Levelling System
The Combi-CSS Container Loader’s Hydraulic Levelling System ensures smooth and precise loading by automatically adjusting the platform height. This feature compensates for uneven surfaces, maintaining stability and alignment during the loading process, which improves safety and efficiency.
3 Phase Electric Motor
The Combi-CSS Container Loader’s 3 Phase Electric Motor delivers reliable and powerful performance for heavy-duty operations. Its energy-efficient design ensures consistent power output, reducing downtime and maintenance while enhancing overall productivity during container loading.
Patented Push-Pull Mechanism
The Combi-CSS Container Loader’s Patented Push-Pull Mechanism allows for quick and seamless loading and unloading of containers. This innovative system securely grips and moves loads in and out of the container, minimising manual handling and reducing the risk of damage to goods.
